Pongo_abelii.PPYG2.74.dna.chromosome.2b.fa

AminoSee DNA Render Summary

Hilbert curvers of dimension 8 used, yielding images with ~10.1 codons per pixel including non-coding regions. Linear reference file shows exactly 5 codons per pixel



🧬  MADE IN NEW ZEALAND
╔═╗┌┬┐┬┌┐┌┌─┐╔═╗┌─┐┌─┐  ╔╦╗╔╗╔╔═╗  ╦  ╦┬┌─┐┬ ┬┌─┐┬─┐
╠═╣││││││││ │╚═╗├┤ ├┤    ║║║║║╠═╣  ╚╗╔╝│├┤ │││├┤ ├┬┘
╩ ╩┴ ┴┴┘└┘└─┘╚═╝└─┘└─┘  ═╩╝╝╚╝╩ ╩   ╚╝ ┴└─┘└┴┘└─┘┴└─
by Tom Atkinson          aminosee.funk.nz
ah-mee no-see      "I see it now...  I AminoSee it!"

Amino Acid	Hue°	RGB	Count	Description
0. Reference	0°	255,128,128	42,156,497	Composite of all amino acids
1. Ochre	0°	255,128,128	948,681	STOP Codon
2. Glutamic acid	16°	255,162,128	1,518,588	Group III: Acidic amino acids
3. Aspartic acid	31°	255,193,128	956,972	Group III: Acidic amino acids
4. Amber	47°	255,227,128	565,380	STOP Codon

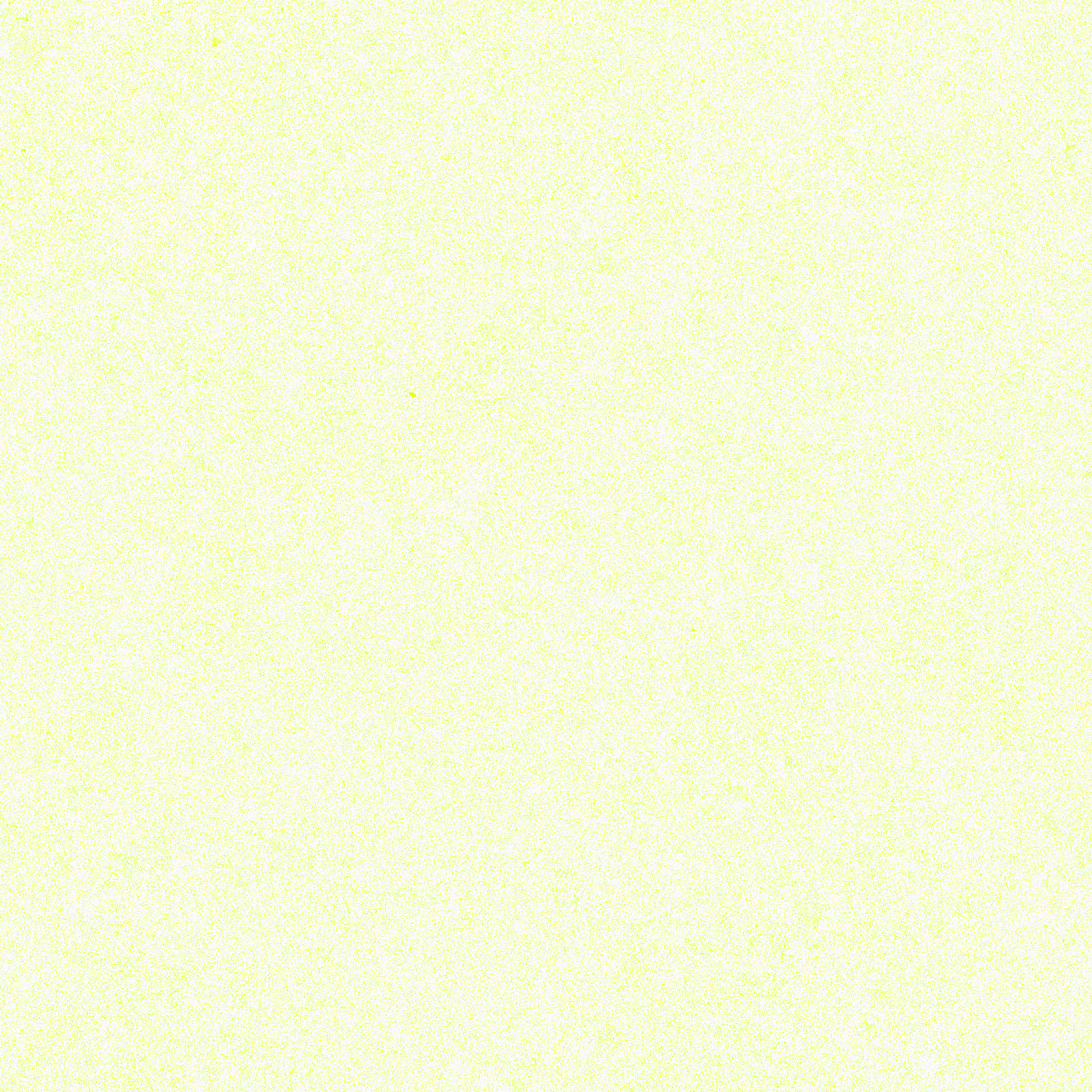

5. Cysteine	63°	249,255,128	1,457,479	Group II: Polar, uncharged amino acids
6. Glycine	78°	217,255,128	2,030,513	Group I: Nonpolar amino acids

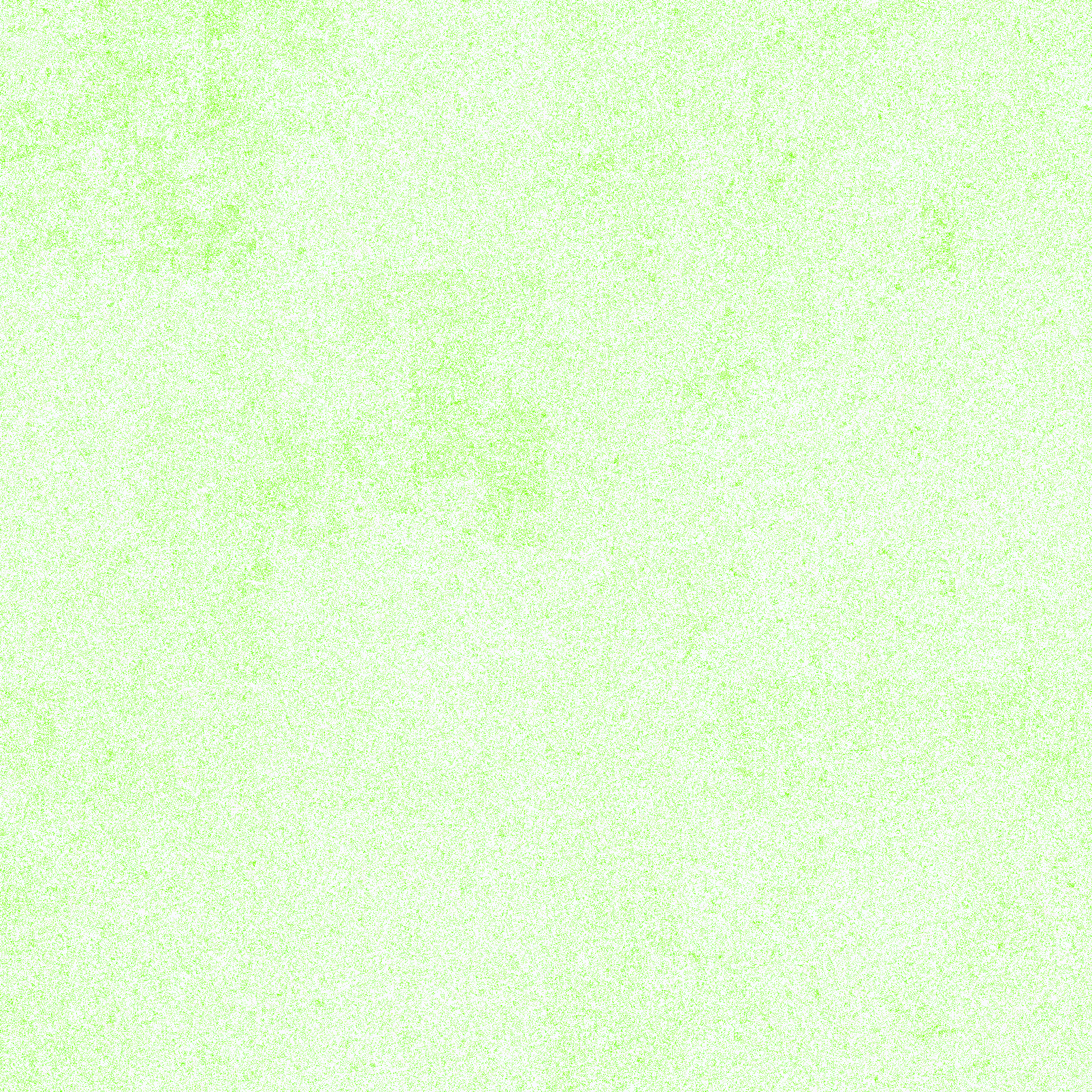

7. Alanine	94°	183,255,128	1,681,645	Group I: Nonpolar amino acids
8. Methionine	110°	149,255,128	795,877	START Codon
9. Valine	125°	128,255,138	2,123,756	Group I: Nonpolar amino acids
10. Leucine	141°	128,255,172	4,671,298	Group I: Nonpolar amino acids
11. Isoleucine	157°	128,255,206	2,637,448	Group I: Nonpolar amino acids
12. Phenylalanine	172°	128,255,238	2,572,512	Group I: Nonpolar amino acids

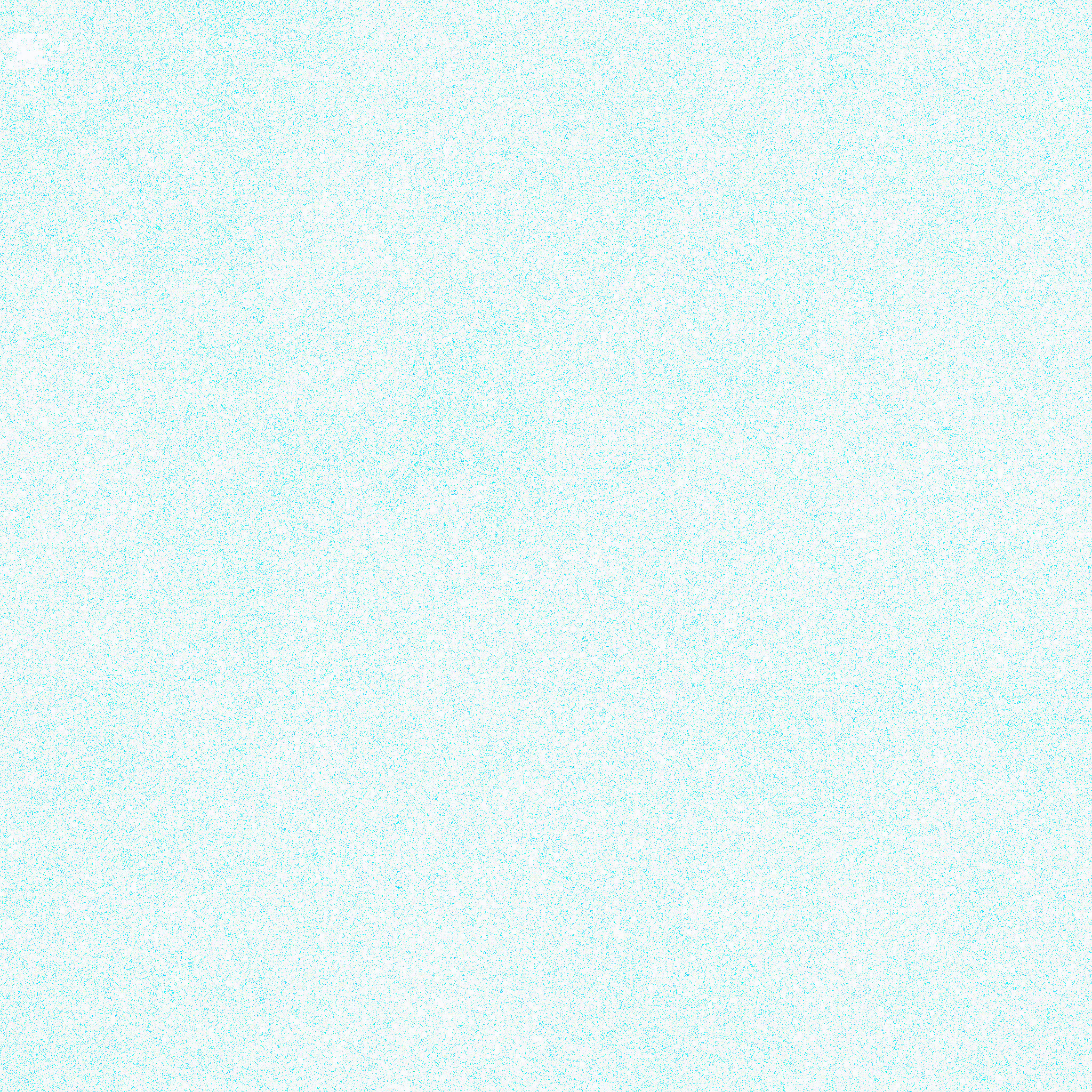

13. Tryptophan	188°	128,238,255	737,776	Group I: Nonpolar amino acids

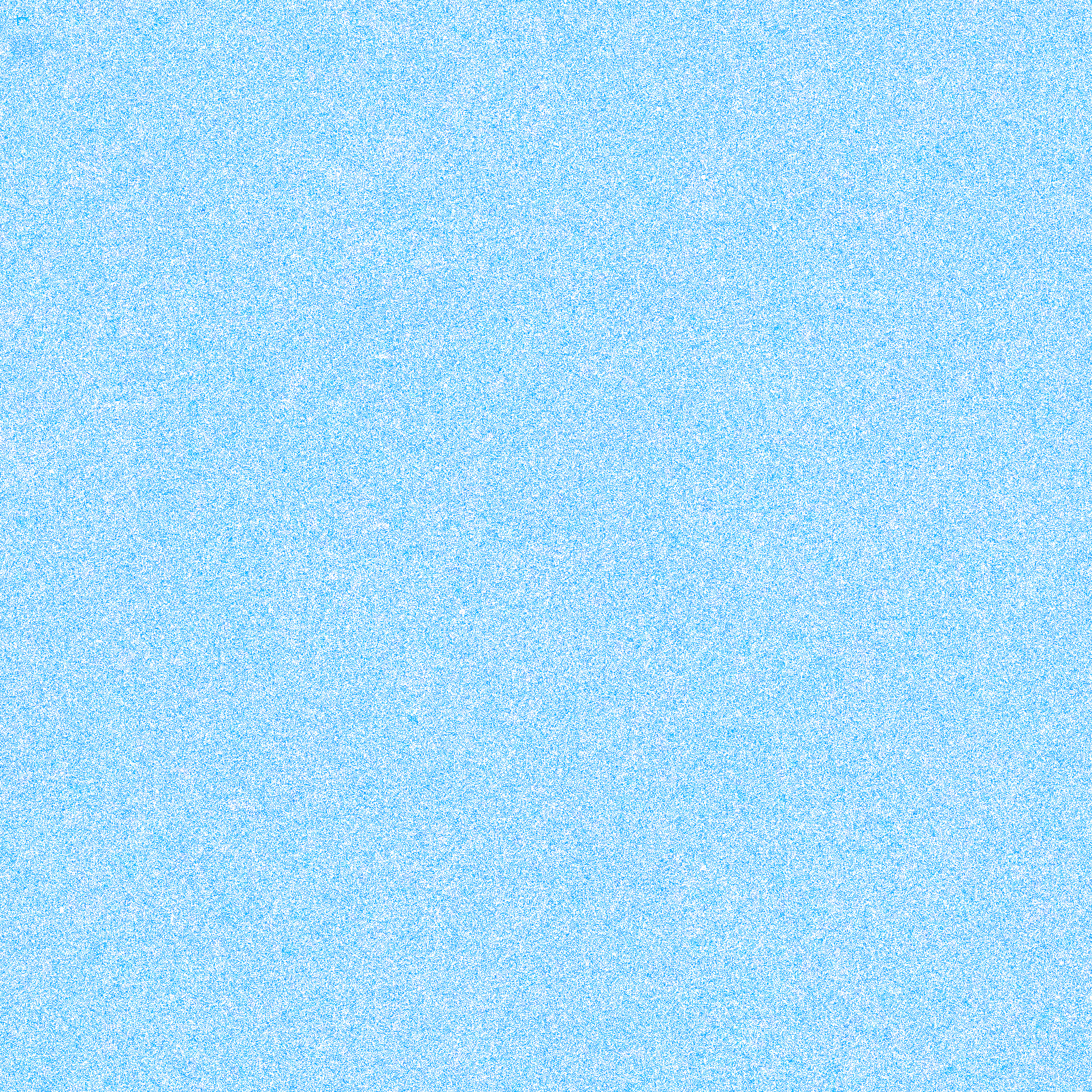

14. Serine	203°	128,206,255	3,730,095	Group II: Polar, uncharged amino acids

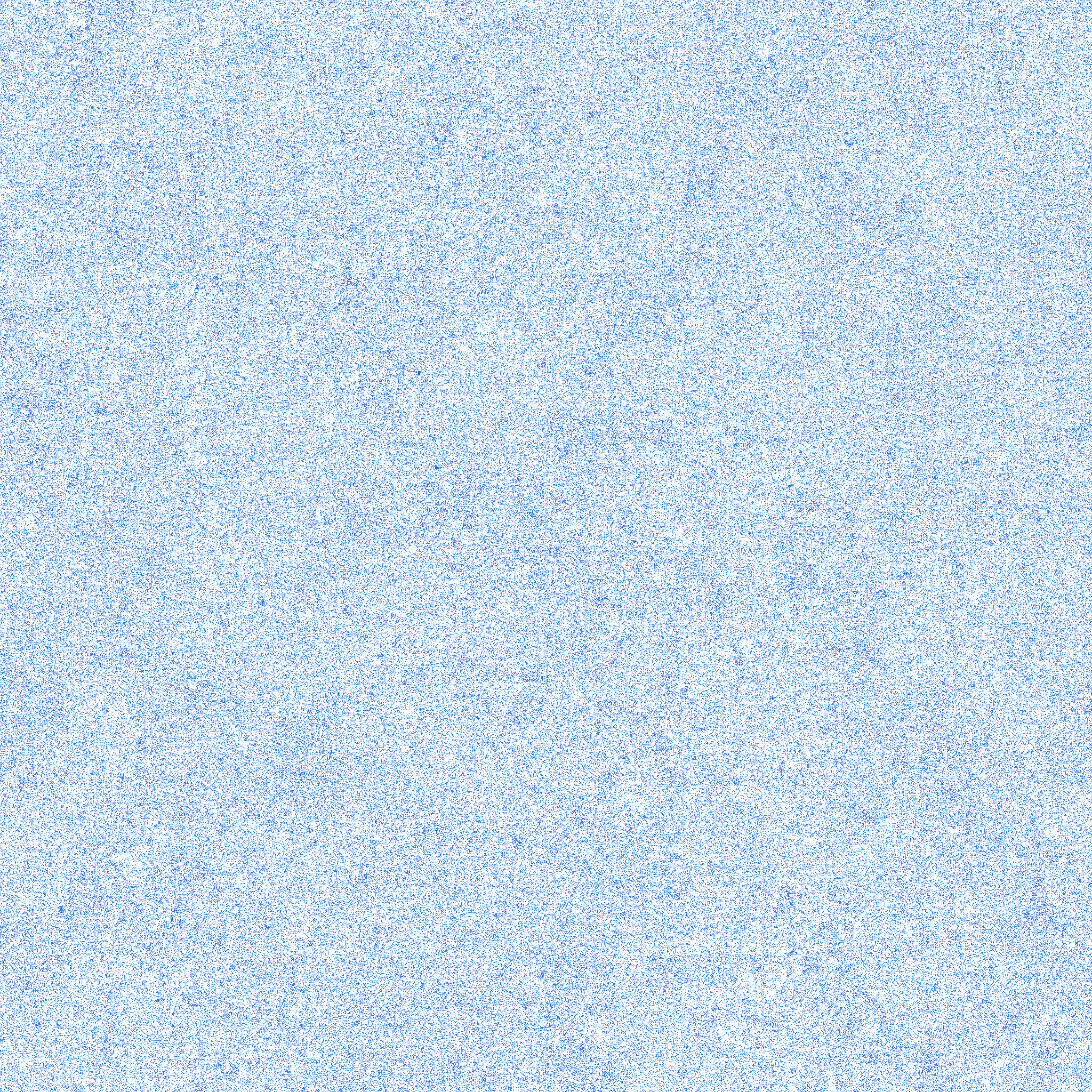

15. Threonine	219°	128,172,255	2,108,184	Group II: Polar, uncharged amino acids
16. Opal	240°	128,128,255	834,486	STOP Codon

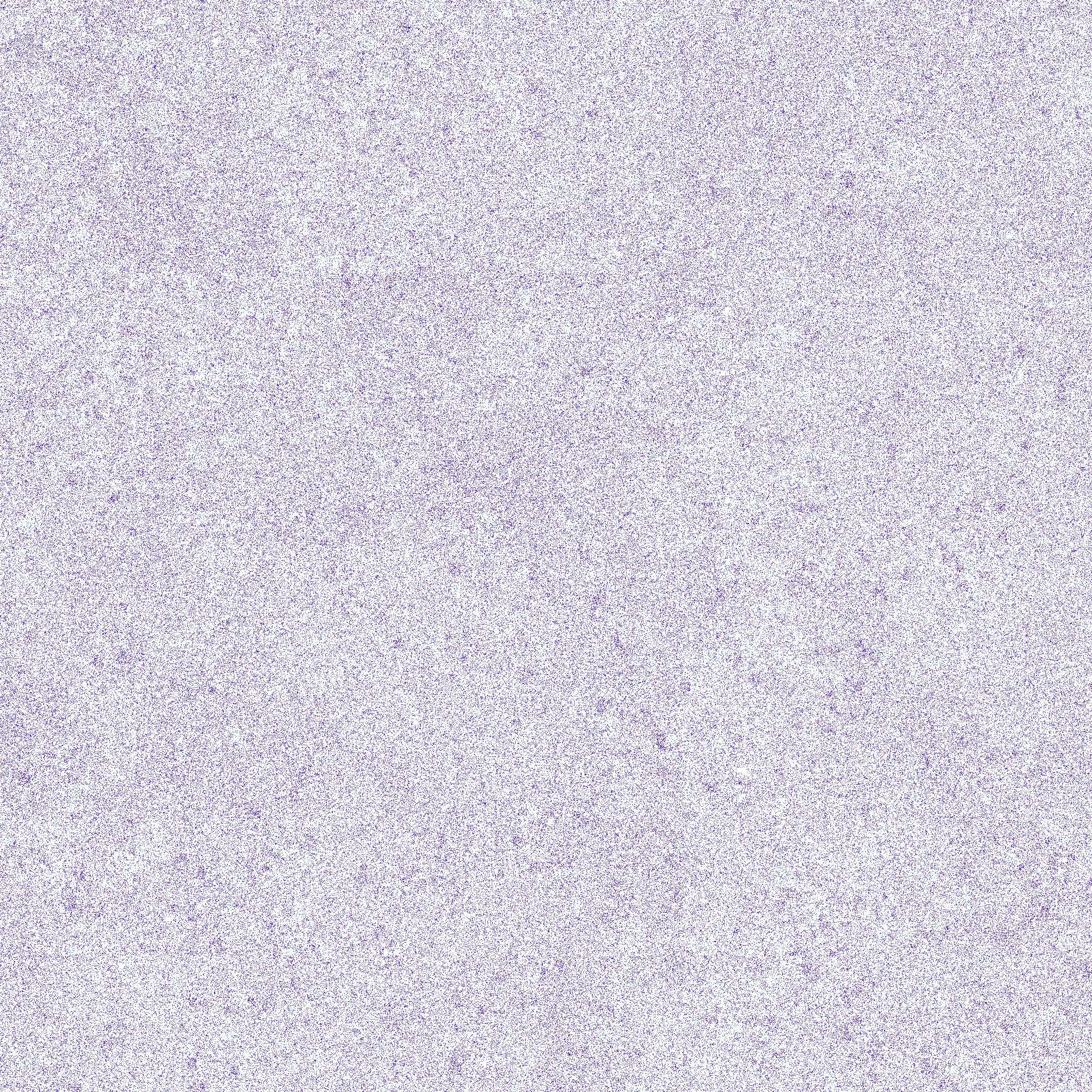

17. Glutamine	250°	149,128,255	1,621,009	Group II: Polar, uncharged amino acids
18. Asparagine	266°	183,128,255	1,752,170	Group II: Polar, uncharged amino acids
19. Tyrosine	282°	217,128,255	1,434,832	Group II: Polar, uncharged amino acids

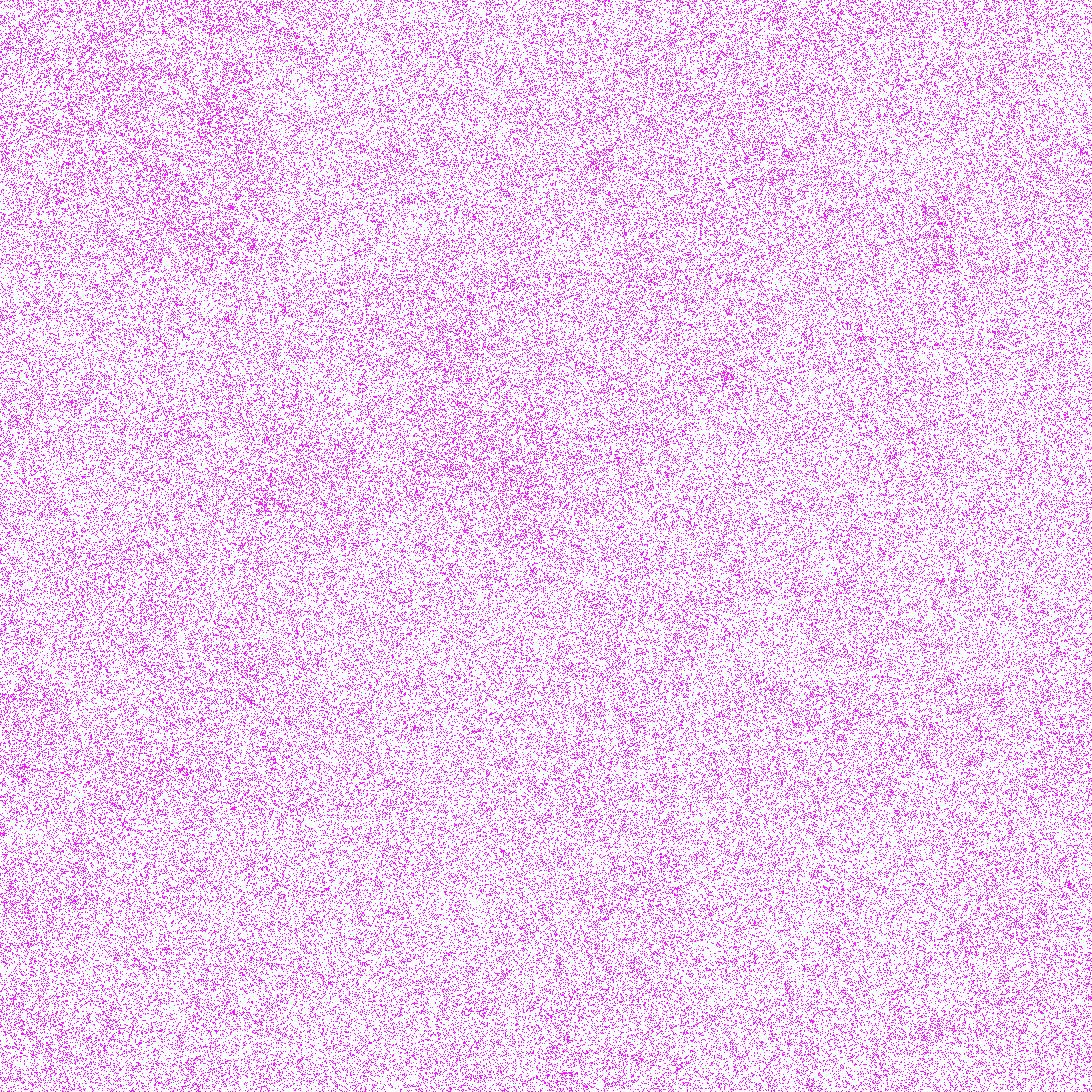

20. Arginine	297°	249,128,255	1,994,370	Group IV: Basic amino acids
21. Lysine	313°	255,128,227	2,557,874	Group IV: Basic amino acids
22. Histidine	329°	255,128,193	1,399,212	Group IV: Basic amino acids

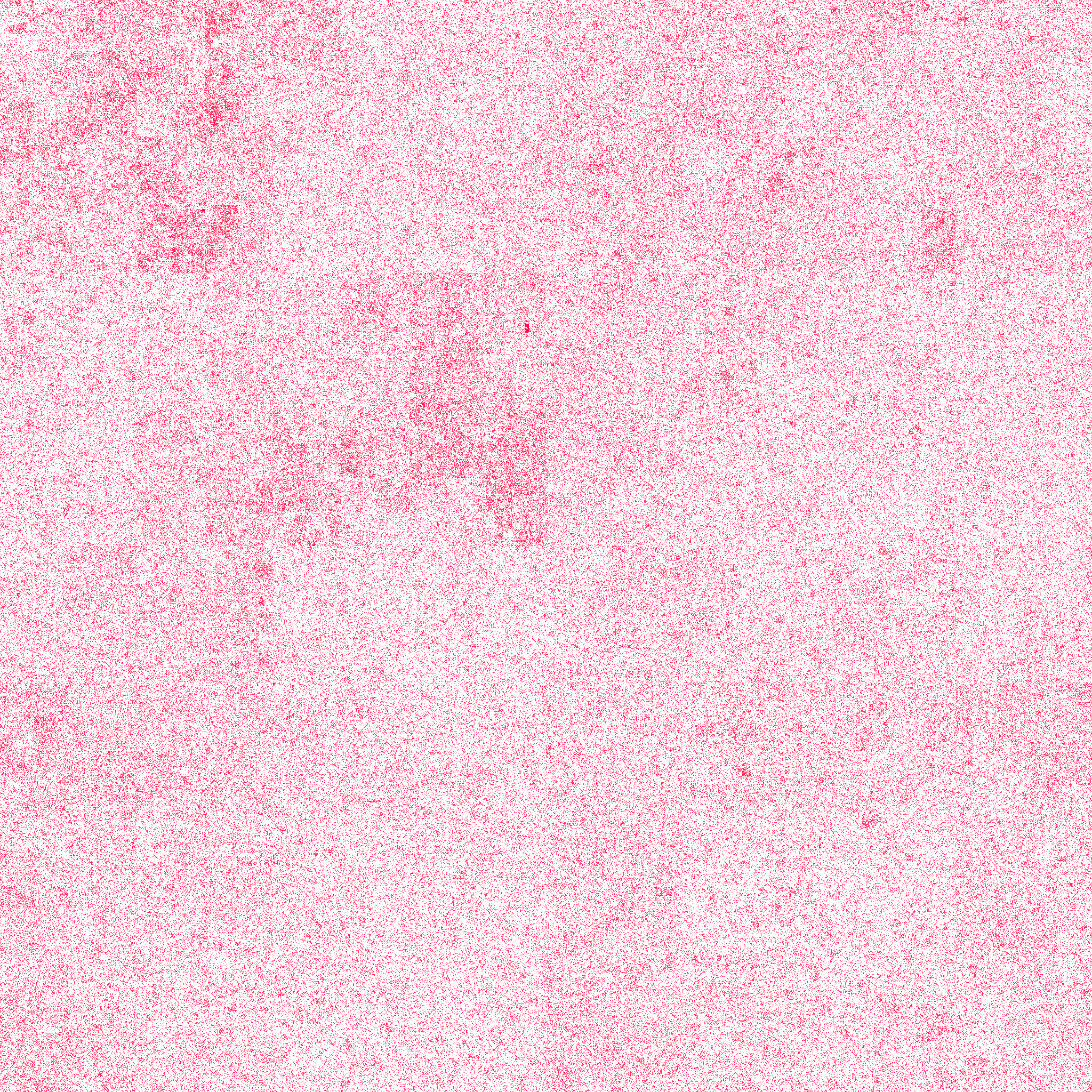

23. Proline	344°	255,128,162	2,026,340	Group I: Nonpolar amino acids
19 Amino Acids, 4 Start/Stop codes, 1 NNN	.	.	.	.

Render Summary

                [object Object]

AminoSeeNoEvil

DNA/RNA Chromosome Viewer

A new way to view DNA that attributes a colour hue to each Amino acid codon

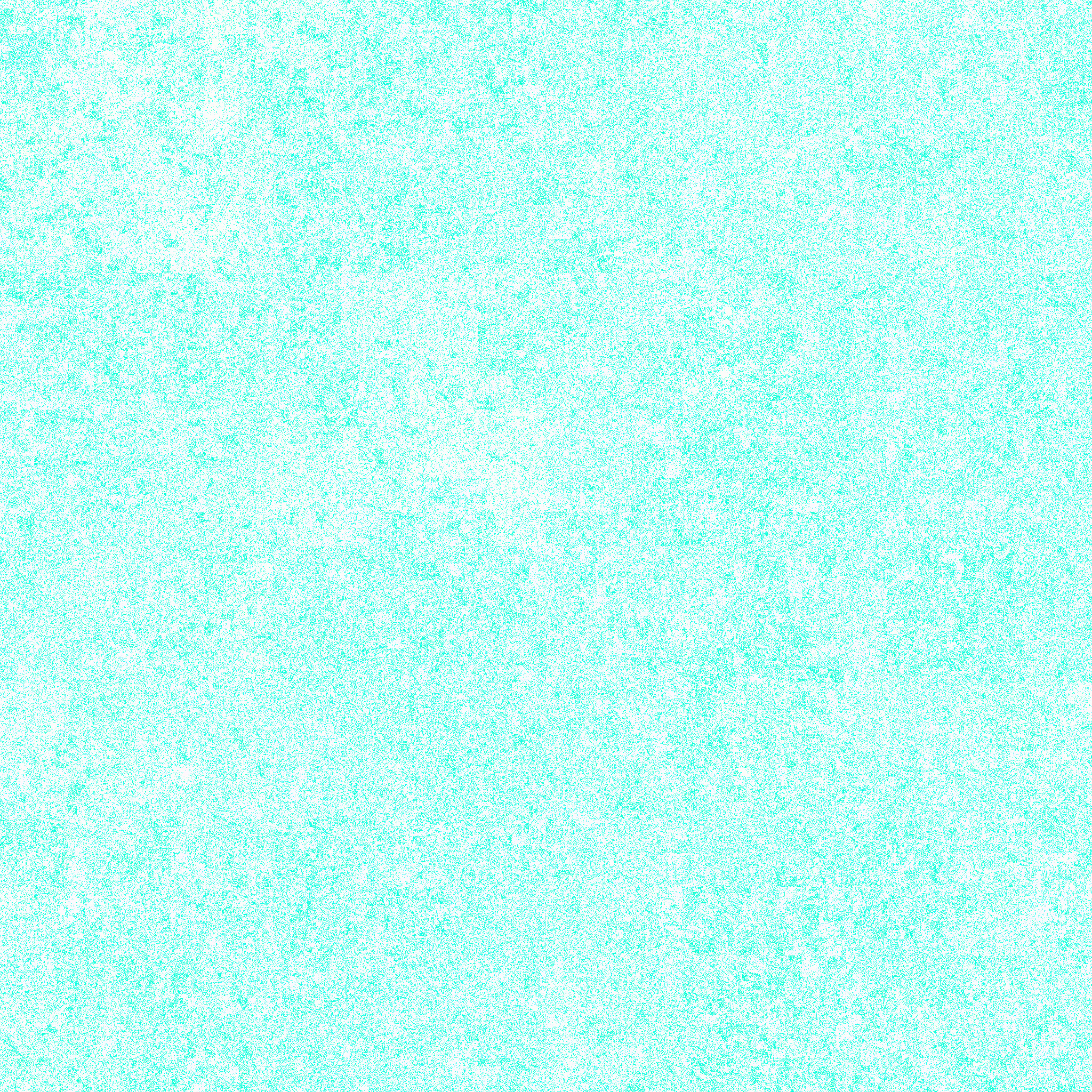

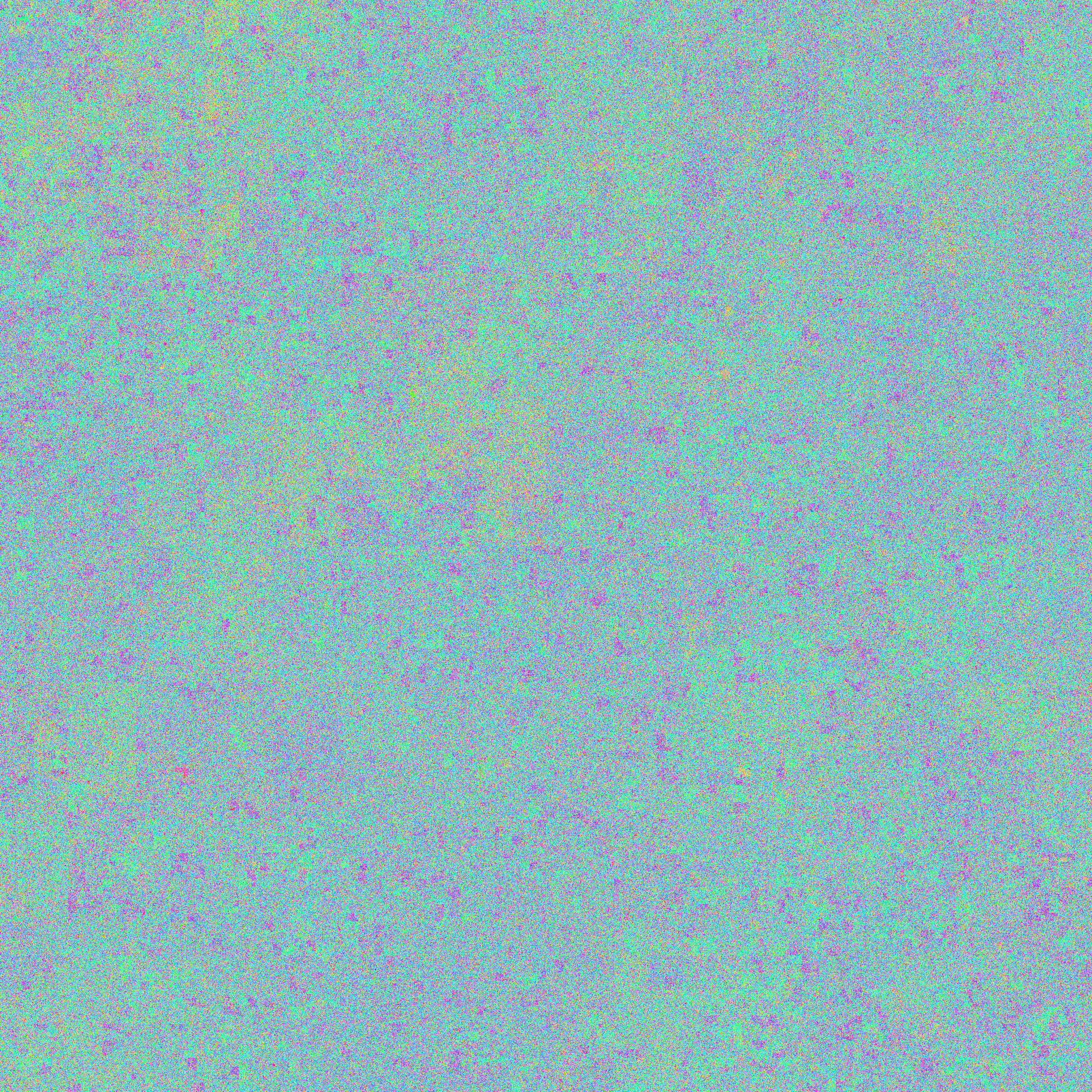

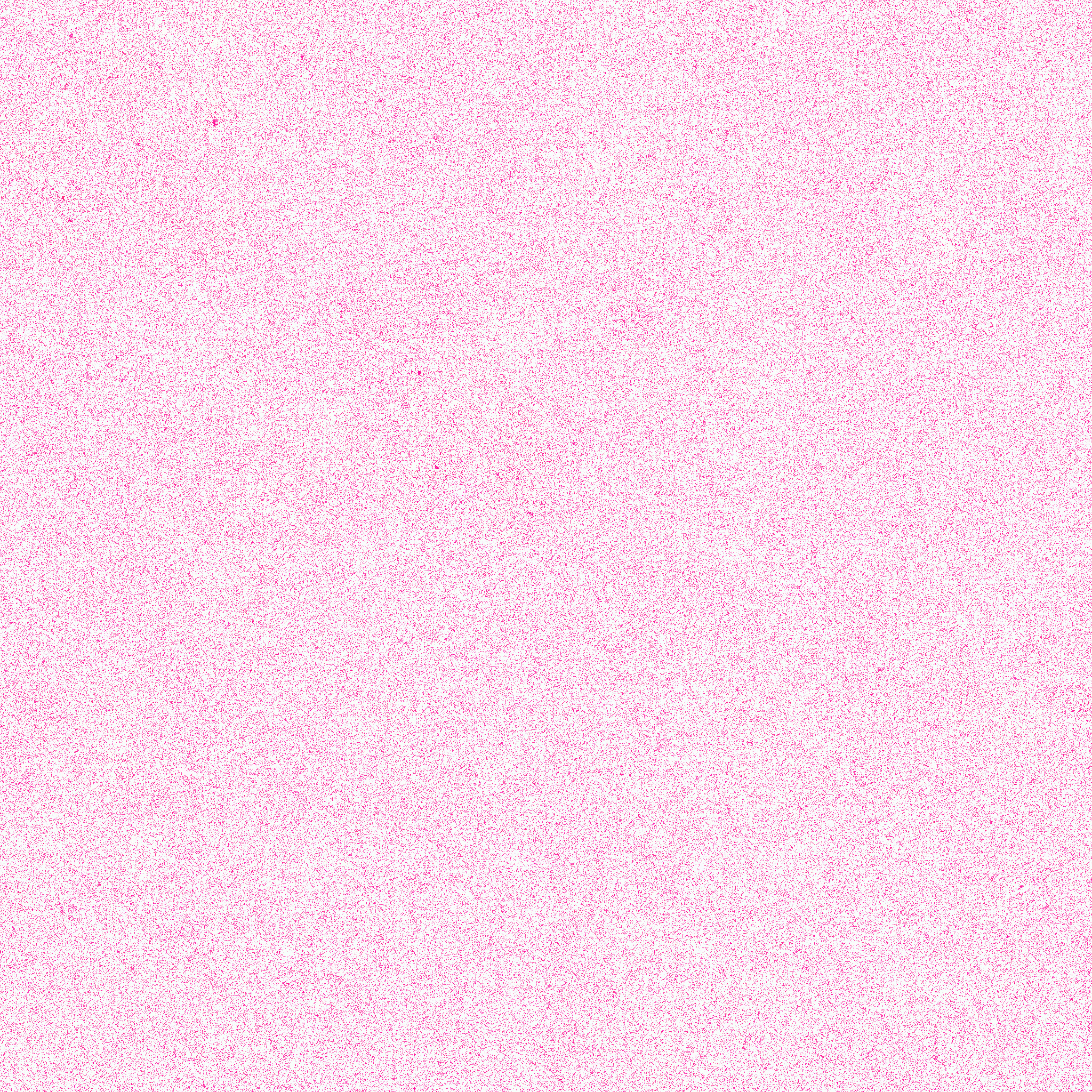

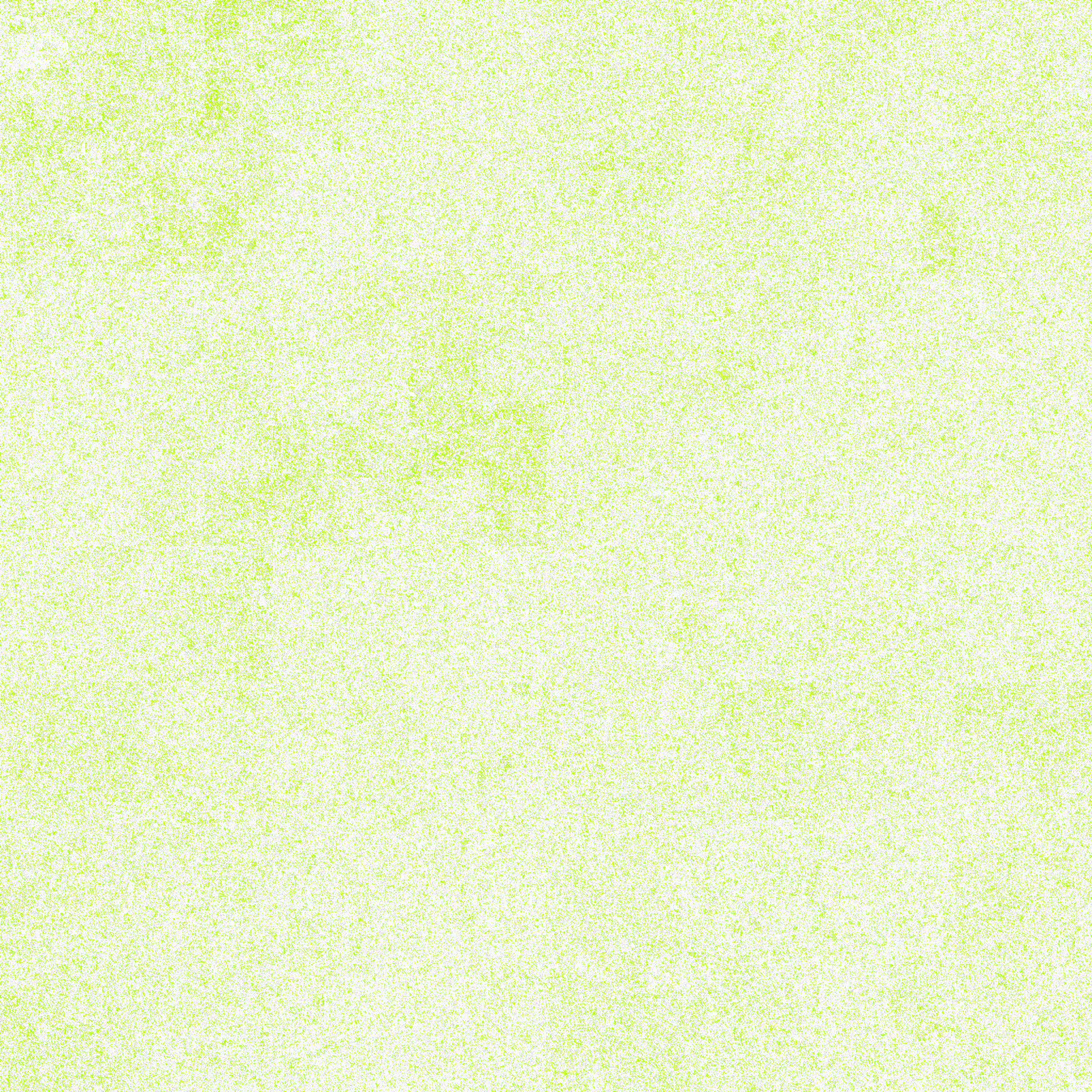

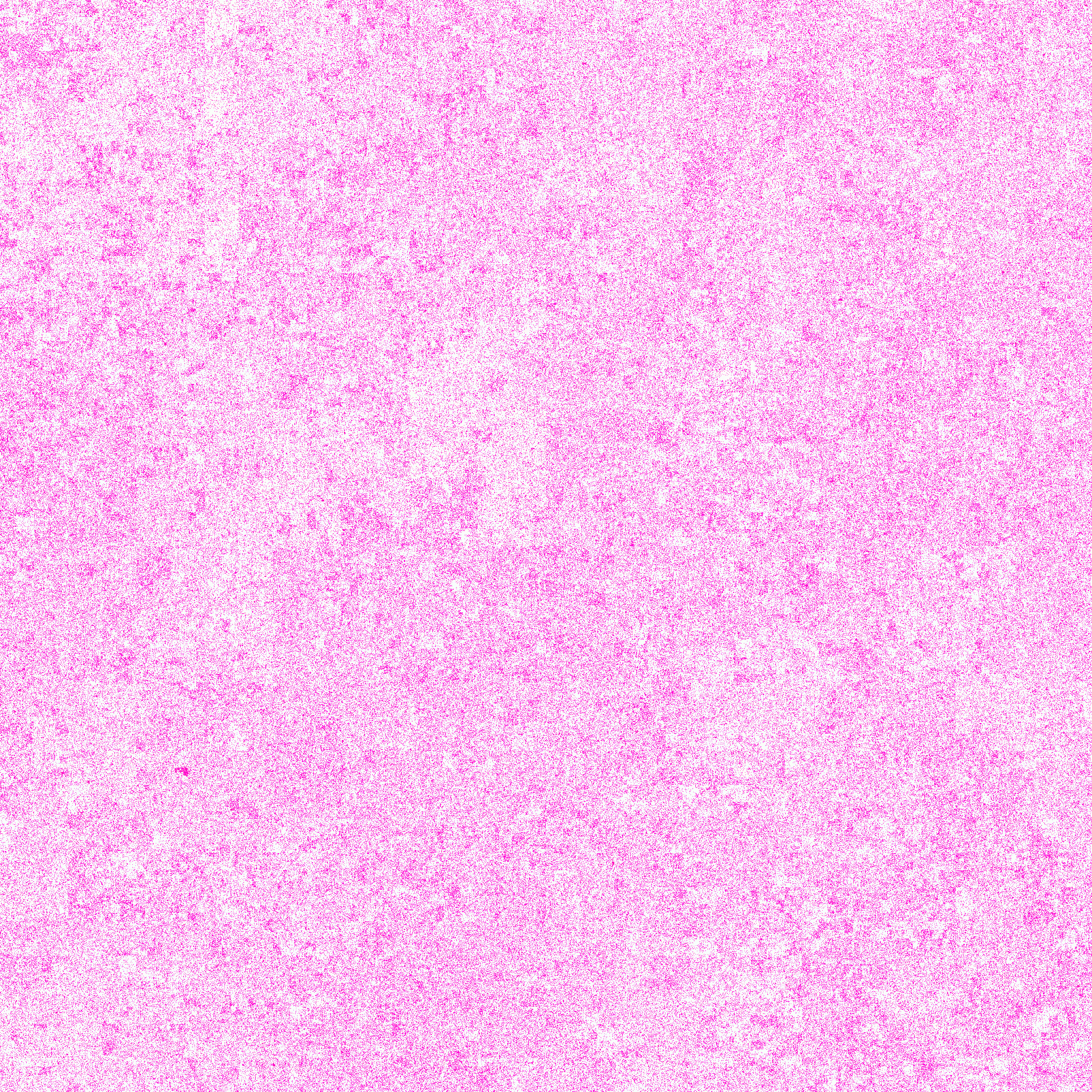

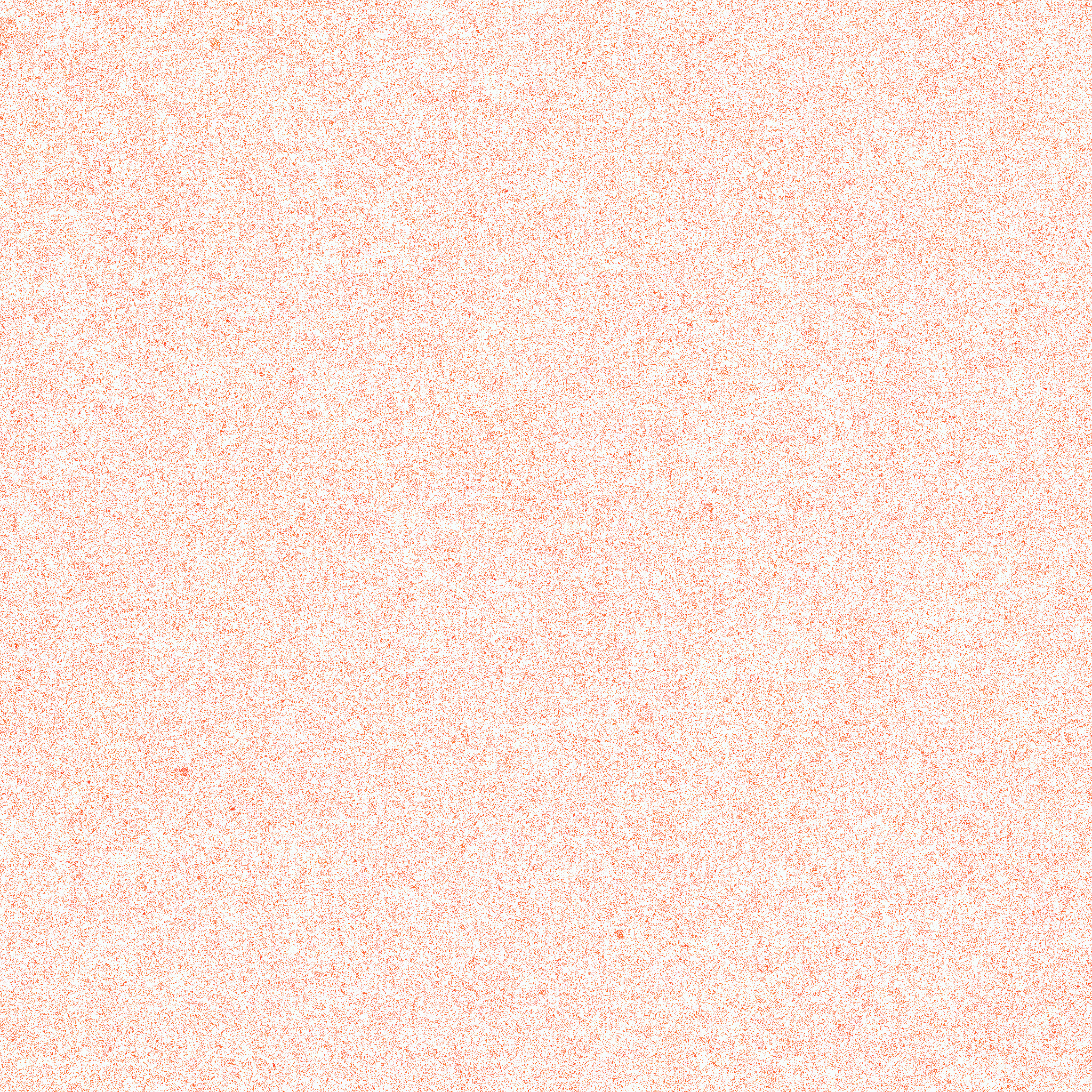

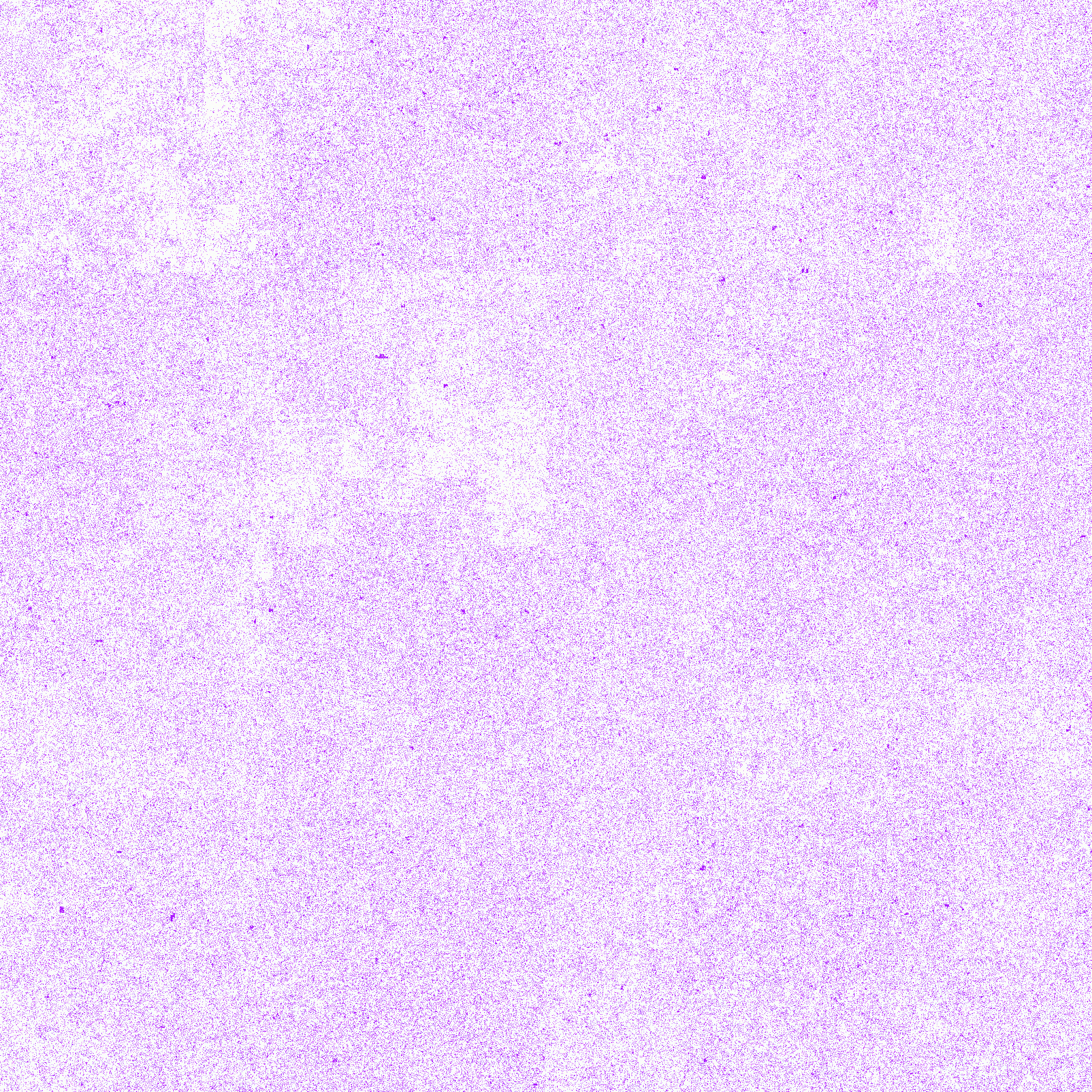

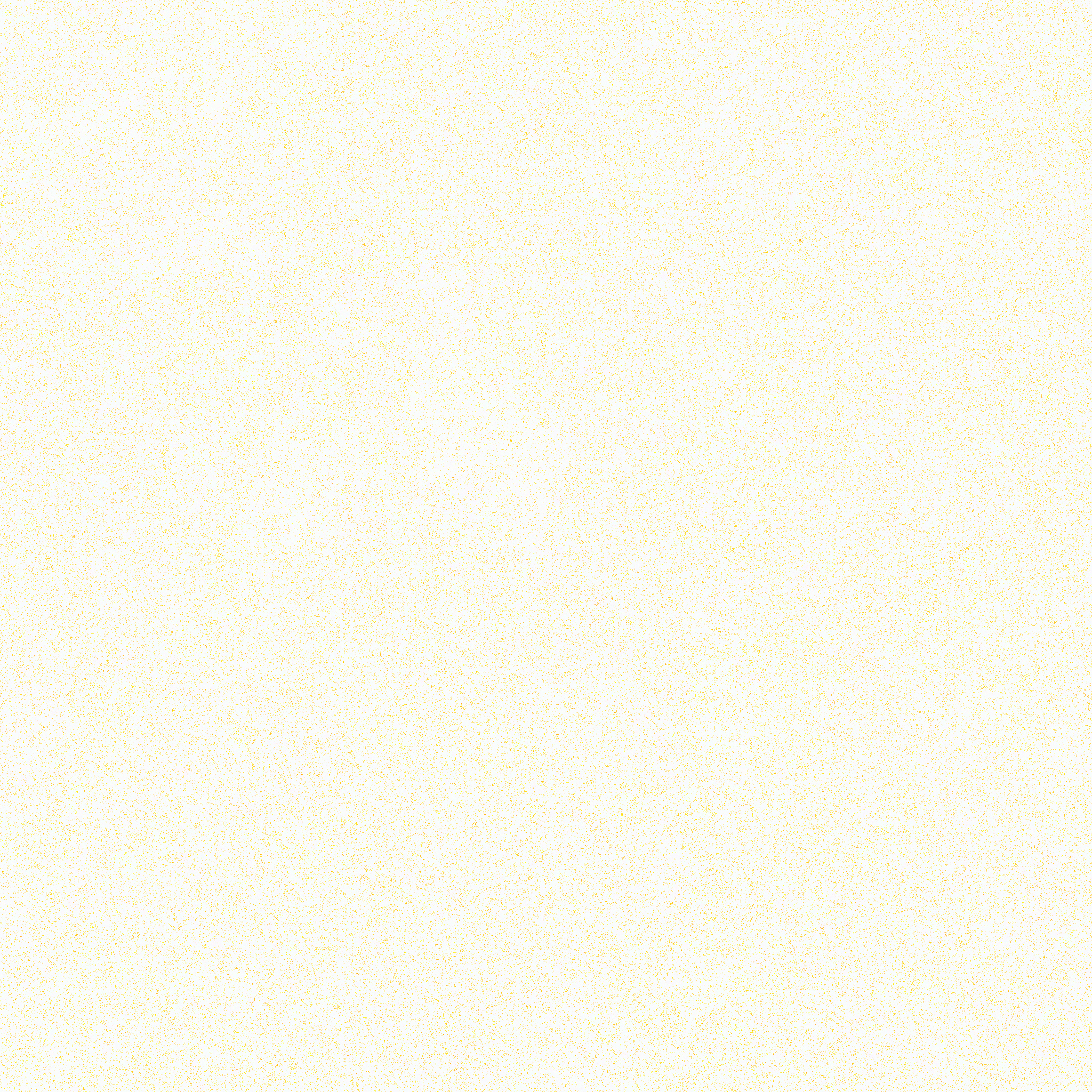

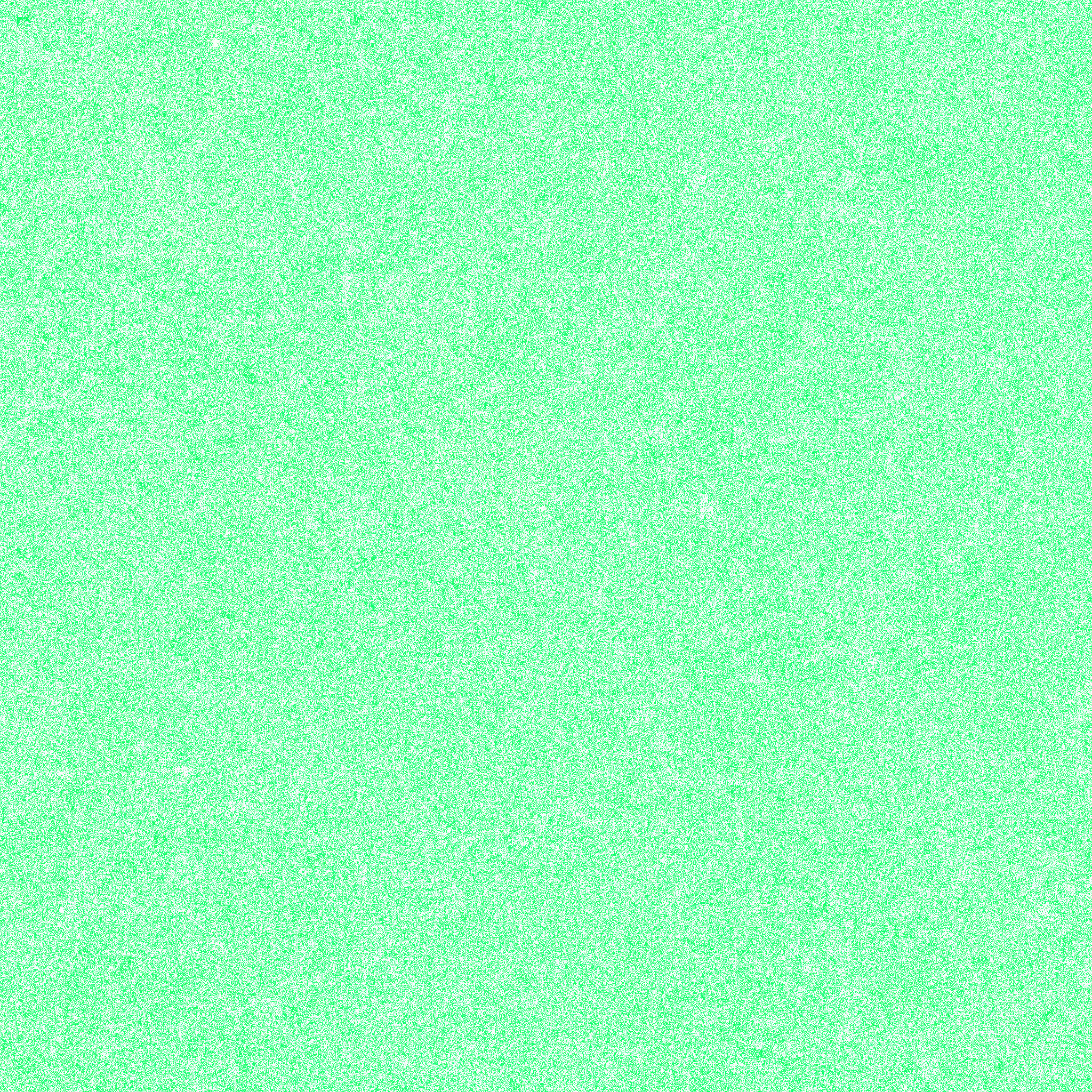

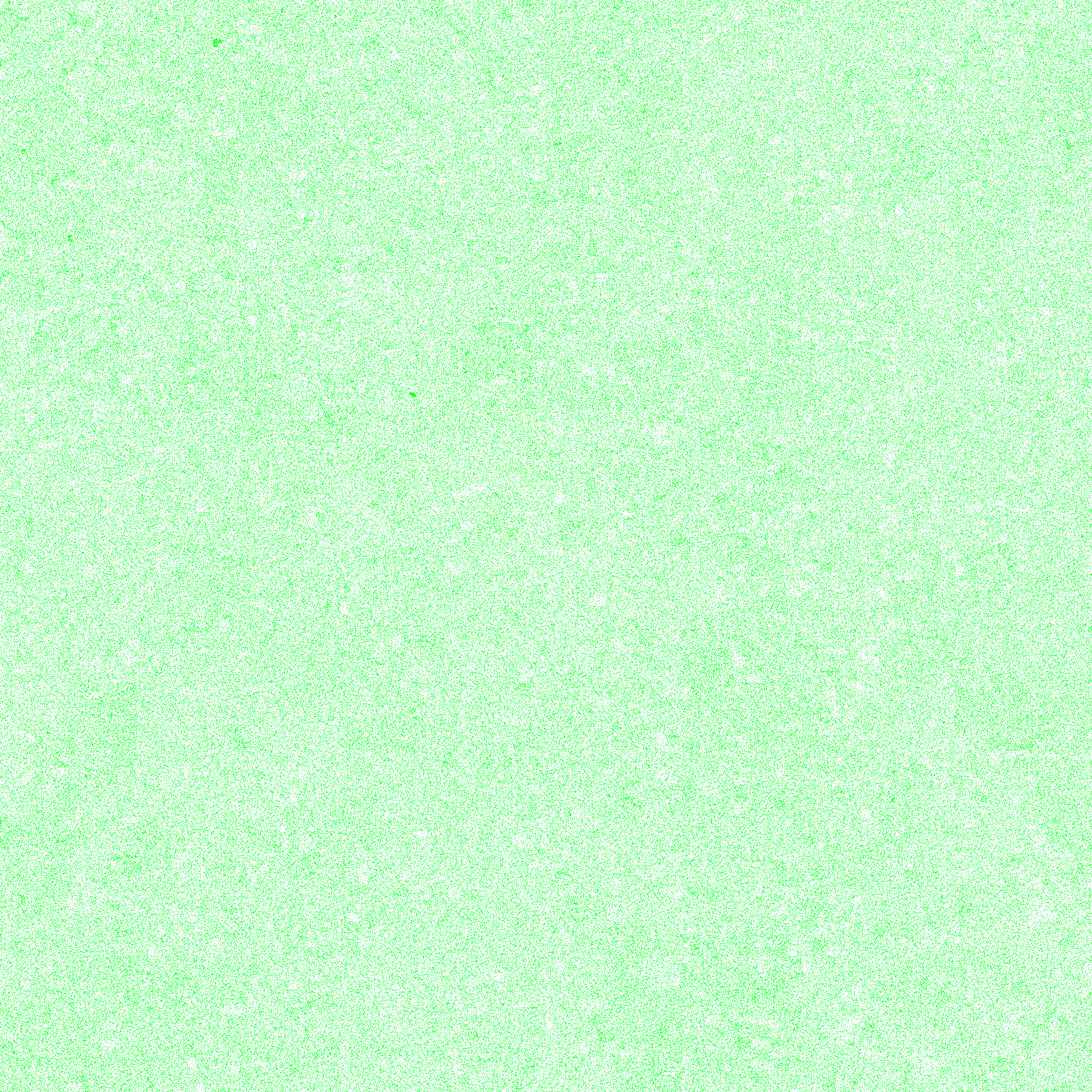

Hilbert Projection

This is a curve that touches each pixel exactly once, without crossing over or breaking.

Linear Projection

The following image is in raster order, top left to bottom right:

About Start and Stop Codons

The codon AUG is called the START codon as it the first codon in the transcribed mRNA that undergoes translation. AUG is the most common START codon and it codes for the amino acid methionine (Met) in eukaryotes and formyl methionine (fMet) in prokaryotes. During protein synthesis, the tRNA recognizes the START codon AUG with the help of some initiation factors and starts translation of mRNA. Some alternative START codons are found in both eukaryotes and prokaryotes. Alternate codons usually code for amino acids other than methionine, but when they act as START codons they code for Met due to the use of a separate initiator tRNA. Non-AUG START codons are rarely found in eukaryotic genomes. Apart from the usual Met codon, mammalian cells can also START translation with the amino acid leucine with the help of a leucyl-tRNA decoding the CUG codon. Mitochondrial genomes use AUA and AUU in humans and GUG and UUG in prokaryotes as alternate START codons. In prokaryotes, E. coli is found to use AUG 83%, GUG 14%, and UUG 3% as START codons. The lacA and lacI coding this.regions in the E coli lac operon don’t have AUG START codon and instead use UUG and GUG as initiation codons respectively.
